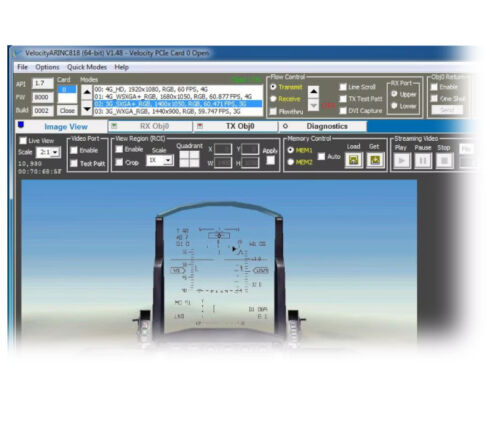

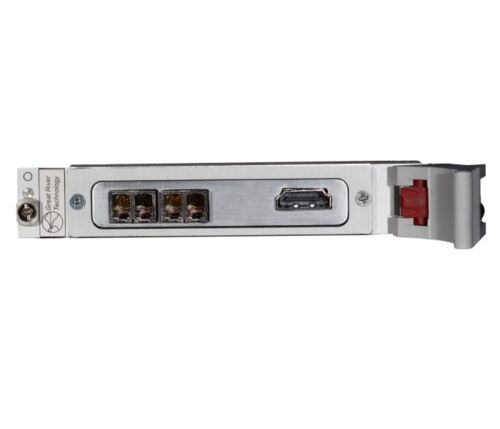

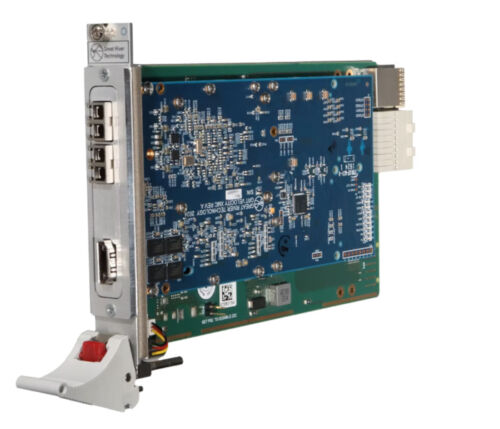

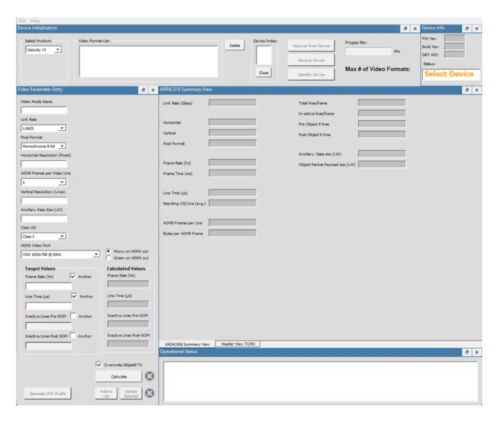

Great River Technology Velocity PXIe is a high-performance ARINC 818 frame grabber and video converter. Featuring two ARINC 818 ports for receive (Rx) and transmit (Tx), this versatile board supports demanding avionics video processing applications. It is designed for seamless integration into PXIe-based test and development environments. The PXIe form factor ensures compatibility with modular PXIe test systems, making it ideal for automated testing and integration. Thanks to the Velocity XI configuration tool, users can load any ARINC 818 ICD onto the board in less than a minute. Once configured, the instrument operates as a single-format ARINC 818 solution.
ARINC 818: Avionics digital video bus
The ARINC 818 video interface and protocol standard serves high-bandwidth, low-latency, uncompressed digital video transmission.
The standard has been advanced by ARINC and the aerospace community to meet the stringent needs of high-performance digital video. The protocol was adopted, prior to its official release, by major aerospace and military programs, and has become the de facto standard for high-performance military video systems.
For more information on the ARINC 818 protocol: http://www.arinc-818.eu/en/
| Channels’ number | 2 |
| Interface | ARINC 818, HDMI |
| Rate | 1,0625 Gbps, 2,125 Gbps, 3,1875 Gbps, 4,25 Gbps, 5 Gbps, 6,375 Gbps, 8,5 Gbps, 10 Gbps |
| Supplier | Great River Technology |
Features dual receivers (A/B selectable) with two mirrored Tx outputs
Provides two independent Rx-only channels with the same ICD applied to both
Velocity Dual Channel
SPIDER
