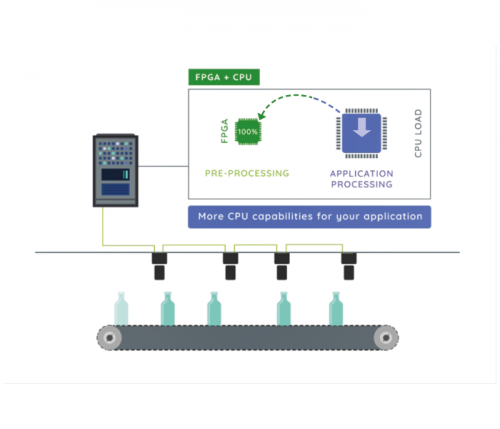

gige vision fpga board - DragonEYE Lite concept
gige vision fpga board - DragonEYE GUI
DragonEYE - GigE Vision FPGA board
gige vision fpga board - DragonEYE Lite key features
gige vision fpga board - DragonEYE Lite concept
gige vision fpga board - DragonEYE GUI

DragonEYE

DragonEYE is a GigE Vision FPGA board for real-time Machine Vision applications. Today, Machine Vision applications process an ever-increasing amount of information that must not be limited by the processing capabilities of computers. To exceed this bandwidth limit, TECHWAY has developed a multi-camera acquisition board equipped with an unique real-time processor.

DragonEYE, thanks to its Vision Engine (FPGA technology), allows to unload the computers by offering the possibility to integrate the image pre-processing directly. This powerful and complex technology is offered in a ready-to-use format accessible to all Vision developers. It allows them to focus on their applications by pushing the limits of their equipment.

This GigE Vision FPGA board has been specially designed for multi-camera applications.

| NEW | A new SDK (Software Development Kit) version is available. Discover its new features below.

Technical sheet
Description
Attributes
Reference
Documents

Applications

  • 3D
  • Multi-camera
  • Laser triangulation
  • High-speed production line
  • High-performance Machine Vision

Benefits

  • Easy-to-program
  • Multi-board
  • Versatile
  • Cost-effective
  • Programmable by user

Key features

  • Multi-camera Vision processor
  • PCIe frame grabber
  • Image processing modules included
  • Real time FPGA processing
  • GigE Vision
  • SDK & API included
  • Xilinx Vivado HLS Webpack (free)

SDK – New features

  • New installer
  • New onboard pattern function for pre-processing tests
  • New 2D filter example design
  • New GUI (Graphical User Interface)
  • Optimization of the SDK for Windows
  • Documentation update

Discover our GigE Vision FPGA board in 2min

Vision processors
Processor FPGA
Protocol GigE Vision
Supplier TECHWAY
  • DragonEYE Lite
    DragonEYE Lite board, thanks to its Vision Engine Xilinx Artix FPGA technology, allows to acquire up to 4 GigE Vision streams and to pre-process each stream in real-time. The user can easily integrate its pre-processing into the open FPGA.
