sFPDP board PCIe

RAVEN

| NEW | RAVEN is now supporting 4 links @ 10 Gbps per link.

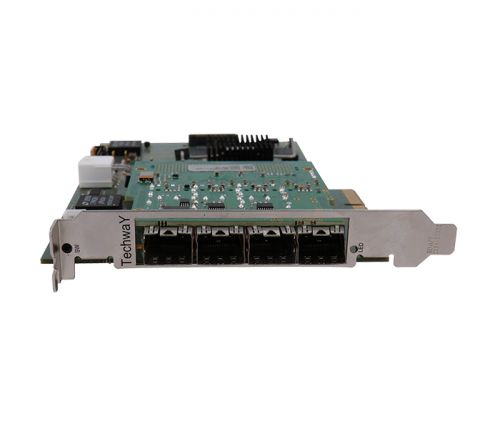

RAVEN is a sFPDP board PCIe implementing 4 sFPDP channels with receive and transmit engine for high-performance data-processing.

Based on AMD (Xilinx) FPGA, this sFPDP board PCIe supports up to 10 Gbps data rate per link. RAVEN is fully dimensioned to implement VITA 17.1 and VITA 17.3 sFPDP standards and offers the following functionalities : Flow Control, CRC, Framed/Unframed, Copy/Loop Mode.

The user-friendly API (Application Programming Interface) software, written in C++, allows to get/send data, monitoring, configure, upgrade, etc.

This sFPDP board PCIe is compliant with copper or fiber thanks to its SFP+ slots.

Technical sheet

Description

Attributes

Reference

Documents

Applications

RADAR
SONAR
Electronic Warfare
Medical imaging
Infrared imaging system
Range & Telemetry system
Physics research
Video production

Key features

4 sFPDP channels
Up to 10 Gbps per link
RAVEN-1 & RAVEN-3 :
- PCIe x4 Gen2
- AMD Kintex 7 FPGA
RAVEN-3_2 :
- PCIe x16 Gen3
- AMD Kintex UltraScale+ FPGA
Trigger input
8 User I/Os connector
Independent clock per channel

Benefits

COTS sFPDP board
VITA 17.1 & VITA 17.3 compliant
Optical or/and copper SFP modules
Multi-board application support
Low power
Windows & Linux compliant SDK

SDK features

Simultaneous sFPDP frame grabber and transmitter up to 4 channels
Software frame buffer management
sFPDP read back functionalities based on timestamp
Board settings and configuration
Statistics

sFPDP protocol

Serial Front Panel Data Port is a high-speed low-latency serial communications protocol for use in high-speed data transfer applications.

sFPDP is ideal for use in applications such as high-speed communication system backplanes, high-bandwidth remote sensor systems, signal processing, data recording, and high-bandwidth video systems.

RAVEN integrates an sFPDP IP designed by StreamDSP, a major player and expert in VITA 17.1 and 17.3 IPs.

Integrated solutions

Channels’ number	4
Environment	Commercial, Industrial
Form Factor	PCIe
I/O	sFPDP
Supplier	TECHWAY

RAVEN-1
VITA 17.1 sFPDP platform, 4 channels, PCIe x4 Gen2.
RAVEN-3
VITA 17.3 sFPDP platform, 4 channels up to 10Gbps, PCIe x4 Gen2.
RAVEN-3_2
VITA 17.3 sFPDP platform, 4 channels up to 10Gbps per link, PCIe x16 Gen3.
RAVEN_850_SFP_pack
Set of 4x SFP+ transceivers multimode 850nm for RAVEN platforms.
RAVEN_1350_SFP_pack
Set of 4x SFP+ transceivers multimode 1350nm for RAVEN platforms.
