Zynq board PCIe with FMC+ site (AMD/Xilinx SoC)

PFP-ZU+ - Zynq board PCIe with FMC+ site

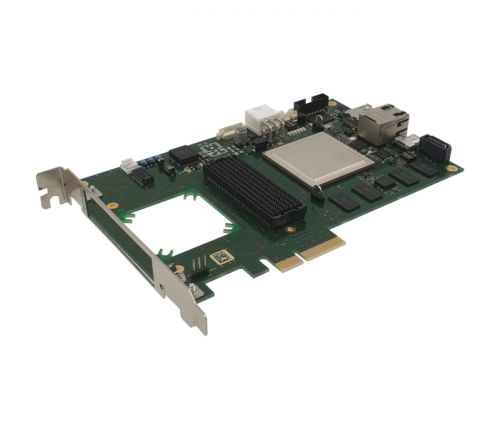

zynq board pcie with fmc+ - PFP ZU right

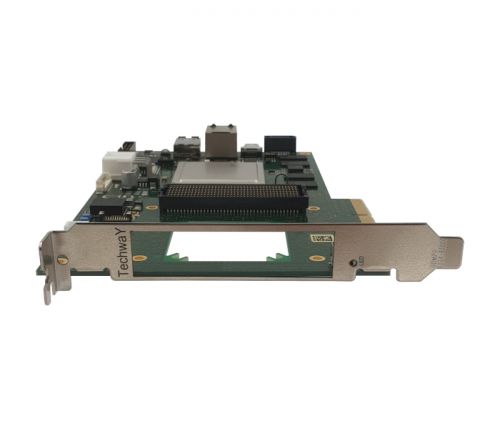

zynq board pcie with fmc+ - PFP ZU front

PFP-ZU+

| NEW | A new version with ZU7EV SoC is now available.

The PFP-ZU+ product range is a multi-purpose Zynq board PCIe with FMC+ site based on the latest AMD’s (Xilinx) SoC (System on Chip) called Zynq UltraScale+. The PFP-ZU+ versatility comes from useful features including a fully FMC+ site, DDR4 memories, a management system, etc. Thanks to Arm processor, you access to multiple interfaces which allow to design stand-alone equipment easily.

Built on a common real-time processor and programmable logic equipped platform, our Zynq board PCIe with FMC+ site features ZU7CG, ZU11EG and ZU7EV SoCs to optimize performance/price ratio.

Zynq® UltraScale+™ MPSoC devices provide 64-bit processor scalability while combining real-time control with soft and hard engines for graphics, video, waveform, and packet processing.

PFP-ZU+ can be easily used in a standard PC environment (drivers available for both Windows and Linux) or in your own enclosure as a stand-alone equipment.

Technical sheet

Description

Attributes

Reference

Documents

Applications

Co-processing
Test bench
Prototyping
Data-aquisition
Data-recording
High-speed data-switching

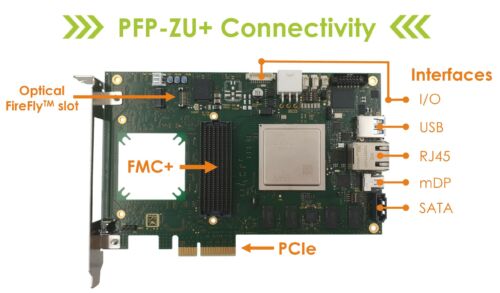

Advantages

PCIe Gen3 compliant
Embedded CPU and FPGA processing
Versatile interface with FMC+ connector
Multiple standard interfaces : USB, SATA, RJ45, etc.
Additionnal interfaces : User I/Os, optical FireFly slot
Cost-effective solution

Key features

Zynq UltraScale+ MPSoC
PCIe x4 Gen3
FMC+ connector
Stand-alone mode
High-speed protocol capable : Up to 16,3 Gbps
Programmable oscillators
Extended optical interface
Windows or Linux support

Development Kit

Quick and complete handling of Zynq
Easy Zynq implementation
PFP-ZU+ I/Os supported
AMD tools supported : VIVADO, Vitis, etc.
Permanent upgrade
Windows and Linux

PFP-ZU+ Development Kit datasheet Download

Discover in 2min our Zynq board PCIe with FMC+ site

AMD’s SoC

AMD’s System on Chip (SoC) is the new disruptive technology for high-end Embedded systems. SoC integrates the software programmability of Arm processor with the firmware programmability of FPGA in one unique component.

SoC offers an unrivalled levels of system performance, flexibility, and scalability. This component is the perfect solution to build stand-alone “SWaP” (Size, Weight and Power) optimized equipment.

TECHWAY has 20 years development experience in AMD FPGA PCIe platform with FMC interface. Thanks to our know-how, we offer cost-effective solutions to bring the SoC technology into industrial applications.

Our PFP-ZU+, Zynq board PCIe with FMC+ site, is a perfect fit for system integrators who are looking for reducing development time thanks to ready-to-integrate boards.

FPGA boards

Environment	Commercial, Industrial
FPGA family	Zynq UltraScale+
Form Factor	PCIe
I/O	A/D, D/A, Optical, SFP, sFPDP, GbE, 10GbE, 25GbE, 40GbE, LVDS
Interface	FMC, FMC+
PCIe	PCIe x4 Gen3
Supplier	TECHWAY

PFP-ZU+_07
PCIe FPGA Platform (PFP) with Zynq UltraScale+ 7CG MPSoC, PCIe x4 Gen3, FMC+ site.
PFP-ZU+_07V
PCIe FPGA Platform (PFP) with Zynq UltraScale+ 7EV MPSoC, PCIe x4 Gen3, FMC+ site, Video/Graphic processor and Video compression.
PFP-ZU+_11
PCIe FPGA Platform (PFP) with Zynq UltraScale+ 11EG MPSoC, PCIe x4 Gen3, FMC+ site, Video/Graphic processor.
PFP-ZU+_11-2
PCIe FPGA Platform (PFP) with Zynq UltraScale+ 11EG-2 MPSoC, PCIe x4 Gen3, FMC+ site, Video/Graphic processor.

Configurations

PFP-ZU+_07_Opt
PCIe FPGA Platform (PFP) with optical FireFly™ module 4 links @ 12G.
PFP-ZU+_07V_Opt
PCIe FPGA Platform (PFP) with optical FireFly™ module 4 links @ 12G.
PFP-ZU+_11_Opt
PCIe FPGA Platform (PFP) with optical FireFly™ module 4 links @ 14G.
PFP-ZU+_11-2_Opt
PCIe FPGA Platform (PFP) with optical FireFly™ module 4 links @ 14G.
